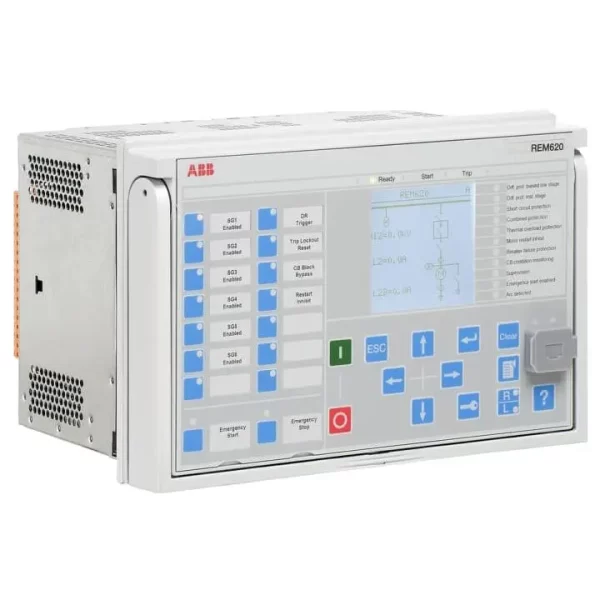

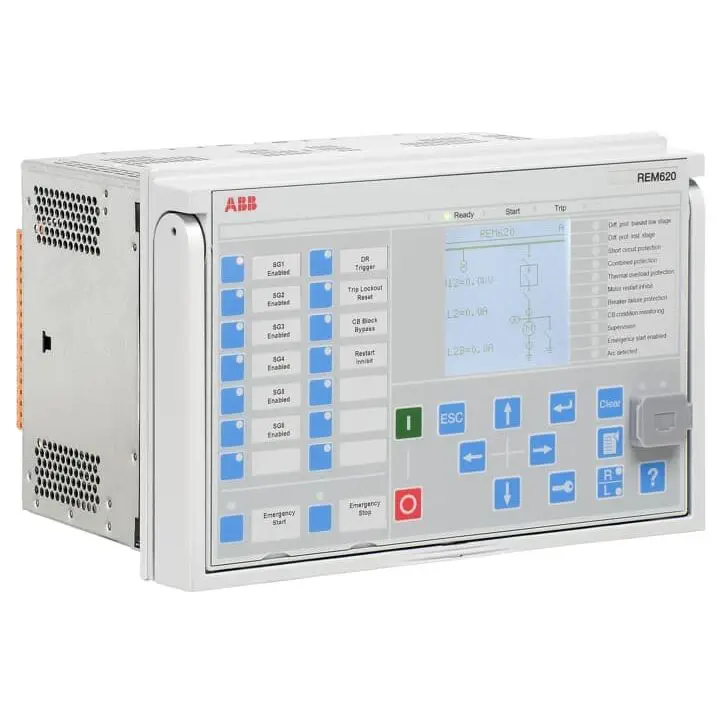

ABB REM620 MOTOR PROTECTION CONTROL RELAY

Description

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

REM620 is a dedicated motor management relay for the protection, control, measurement and supervision of medium- and large-sized asynchronous and synchronous motors in the manufacturing and process industry.

ABB REM620 MOTOR PROTECTION CONTROL RELAY.Motor protection and control REM620 IEC.REM620_NBMNAANNNCA1BNN11G . REM620A_F NAMBBABA33E5BN.

Scope

• Protection for larger asynchronous and synchronous motors

Key benefits

• Extensive protection and control functionality, either with sensors or conventional instrument transformers
• Functional scalability and extensive possibilities to easily tailor configurations to application-specific requirements
• Withdrawable plug-in unit design for swift installation and testing
• Large graphical display showing customizable SLDs, accessible either locally or through an easy-to-use web-browser-based HMI
• Extensive life-cycle services www.seeiyo.com

Key features

• Extensive motor protection for medium- and large-sized asynchronous and synchronous motors requiring differential protection
• Motor protection both during motor start-up and normal run, with protection and fault clearance in abnormal situations as well
• Additionally extensive motor supervision capabilities via RTD and mA measurements and optionally arc protection
• Supports native IEC 61850 Editions 1 and 2, including redundancy HSR and PRP, GOOSE messaging and IEC 61850-9-2 LE for less wiring and supervised communication
• Supports Modbus, DNP3 and IEC 60870-5-103 communication protocols and different time synchronization methods, including high-accuracy time synchronization via IEEE 1588 V2 Precision Time Protocol

Recommended offeringfor medium-voltage switchgearDigital Substations：
